A weep, a weep hole, or a weep-brick is a small opening that allows water to drain from within an assembly. … In such cases the weeps may consist of a plastic, clay or metal pipe extending through the wall to a layer of porous backfill.

Why are weep holes required?

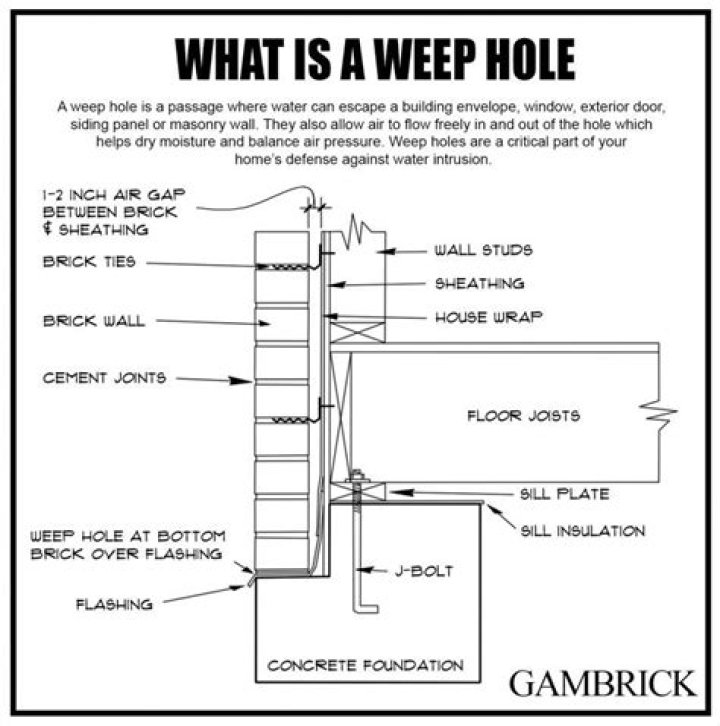

So what exactly is a weep hole? A weep hole is a passage for water to escape a building envelope. Weep holes serve an important purpose of a home; they allow the home to “breathe” as some say. Since there are many chances for water to enter the home, weep holes allow for water exit.

Where is weep hole provided?

Weep holes are provided in masonry walls, retaining walls, underpasses, wing walls and other ground draining structure.

How do you identify a weep hole?

Therefore, weep holes are at the bottom of brick veneer, just above the top of the foundation, and directly above the termination point of any flashing installed behind the brick. Weep holes also should be located above doors, above and below windows, and above any other openings in the brick wall.

Can water get in weep holes?

This research demonstrated that even under truly extraordinary conditions water rarely enters the weephole and even if it does it cannot be blown high enough up in the cavity to create internal damp problems. To understand why, it’s important to look at the details of a correctly constructed cavity wall.

Are weep holes required by code?

2 is in place on the exterior wall behind the brick veneer in the exterior wall envelope of a house. There is no code requirement for an air space. … Weep holes are to be present at the base of the exterior brick walls top and bottom of all openings of a masonry covered house. Section R703.

Can I fill in weep holes?

Whatever you do, do not fill those weep holes. They’re an integral part of the drainage system to keep water from building up behind the brick. If allowed to contact any untreated lumber, this water will cause serious wood rot, mold and, eventually, structural problems with your home.

How high should weep holes be?

Weep holes should be placed immediately above all flashing and be spaced no more than 24 in. (600 mm) on center when open head joints are used, and no more than 16 in.

How many weep holes are there?

Vents are required at 450mm intervals and each opening should have at least 2 weep holes.

Should weep holes be covered?

Weep holes should not be sealed to keep pests out. Though homeowners naturally want to block pests, weep holes should not be sealed with caulk or mortar. The holes are still necessary to drain water and to ventilate the air space.

Article first time published on

What are weep holes in concrete?

A weep hole is a small hole that’s drilled on the base of your foundation wall to provide aeration and an escape route for water. The weep hole also does the following: Improves drainage: Rainwater or moisture that gets into the concrete block or brick cavity needs to escape.

What does a weep hole protector do?

This patented clear plastic ring is designed to keep mortar from the weep holes in a drain. The ridges of the Positive Weep Hole Protector™ allow for water to flow underneath the mortar and into the weep holes.

What size are weep holes?

The most common ones are 1/4 or 3/8 inch in diameter by 3 1/2 to 4 inches long. Manufacturers recommend installing them at an angle in the mortar of the head joints, spaced 16 inches apart. COTTON WICKS Cotton wicks are used to form another type of weep system.

What is a weep drain?

Definition. Weep holes are a vital part of your shower drain assembly. Typically, there are three such holes in the upper portion of the drain assembly, spaced evenly around the drain. The weep holes are small holes that connect to the main drain, allowing water that enters them to feed into the drainpipe.

Can snakes get in weep holes?

Rats, mice and lizards will get in the house thru weep holes, and snakes can go ANYWHERE they can go. Usually they will end up in the attic.

Why is there a gap between bricks?

Q: There are gaps between some bricks around the base of my home. … Those gaps are called “weep holes” — a building code requirement that drains water out of brick exterior walls. Typically, behind the brick is a 1.5-inch cavity or air space and then the wood structure.

What is behind brick on a house?

Behind the brick veneer is a wood frame wall which is actually holding up the house. The brick veneer is, in effect, siding! Insulation. Brick veneer became the norm when building codes began to require insulation in the exterior walls.

How do you drill a weep hole?

A drill and a masonry bit can be used to drill the holes. I’d recommend a 5/8 to ¾ inch hole in each cavity. You don’t need to drill all the blocks initially. Simply concentrate on the area where water is seeping out.

Do you need weep holes at DPC level?

There isnt normally a cavity tray at dpc level, unless in instances where the likes of a Radon Barrier is required, which should overlap inner wall, cavity and outer wall. You would then need a cavity tray above with weep holes.

Can you concrete over weep holes?

You could concrete over them but if you get mould, rising damp, termites or other issues that can be avoided (these may happen anyway but less chance of it without the higher concrete) then you would need to accept it. The step down won’t be a big issue IMO. Re: Covering Weepholes?

What is a shower drain flange?

A bathtub drain flange is the finished drain part that’s visible in the tub. Some manufacturers refer to the drain flange as a “drain body” or “drain basket”. … Between the underside of the flange and the tub surface, there’s a good amount of plumbers putty that seals the inside of the drain.
