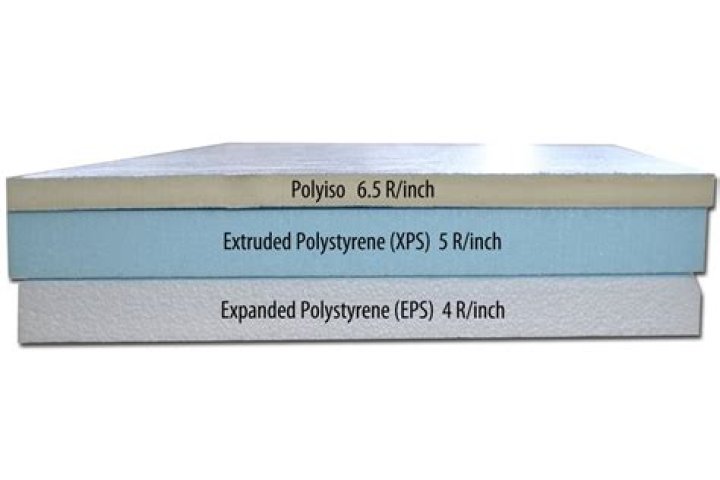

What is the R-value of foam board insulation? Foam board insulation R-value varies based on type but is anywhere from 3.6 per inch of insulation thickness to 8.0. The types of foam board insulation include polyurethane, polyisocyanurate, extruded polystyrene foam, and expanded polystyrene foam.

What is the R-value of rigid foam insulation?

Extruded polystyrene: Extruded polystyrene (XPS) rigid foam is usually blue or pink in color, with a smooth plastic surface. XPS panels typically aren’t faced with other material. The R-value is about R-5.

Is foam board a good insulator?

Foam board insulation provides good thermal resistance and reduce heat conduction through structural elements, such as wood and steel studs, according to the U.S. DOE.

What is the R-value for 2 inch rigid insulation?

Thickness (Inches)R-value (in I-P/Imperial)RSI (R-value in Metric)1.06.21.081.59.31.622.012.42.162.515.52.7

What is the R-value of blue foam board?

Extruded polystyrene foam (XPS) also known as blue board or pink board comes in many different thicknesses and edge profiles. This insulation board is probably one of the most widely used foam board insulation products in the residential construction industry. XPS has an R value of 4.5 to 5.0 per inch of thickness.

What is the difference between pink and blue foam board?

Both are manufactured using the same process and contain similar chemical components. The two products also have the same insulating power. However, blue foam boards are manufactured by Dow Chemical Co. whereas the pink foam boards are manufactured by Owens Corning company.

What is the R-value of 2 inch foam board?

A wall utilizing STYROFOAM T-MASS Technology with a 2-inch exterior layer and a 4-inch interior layer of concrete along with a 2-inch layer of STYROFOAM extruded polystyrene insulation would result in a material R-value of approximately 11.33.

Can you put fiberglass insulation over foam board?

insert foam board between the studs to seal everything up tight, and then install fiberglass batts over the foam board. Finish with plastic stapled to the studs, then drywall.

How thick should foam board insulation be?

It comes in standard-size 4×8 sheets, and smaller sizes, in many different thicknesses from 1/4 inch to 2 inches. Some types of thicker foam board insulation are available, but they may need to be special ordered. Foam board insulation is easy to use and is a great DIY way to add some insulation.

Can foam board insulation be layered?

Polyiso is the insulation of choice for commercial roof applications because its closed cell characteristics create more R-value per inch than any other rigid foam board insulation product.

Article first time published on

Does foam board insulation need a vapor barrier?

Foam insulation usually does not require a vapor barrier. For some foam insulation types, such as closed-cell spray foam and foam board insulation, the insulation itself stops the movement of most water vapor.

Can you use foam board instead of OSB?

Styrofoam Residential Sheathing offers a lightweight, efficient sheathing alternative to high-priced OSB panels. One solution: Specify rigid Styrofoam Residential Sheathing instead of OSB, for sections of the home that can be brought to code with other stiffening measures.

What is the best R-value for walls?

Typical recommendations for exterior walls are R-13 to R-23, while R-30, R-38 and R-49 are common for ceilings and attic spaces.

What is the R-value of 1 inch of spray foam?

Open-cell spray foam has an R-value of about R-3.7 per inch, while closed-cell spray foam has an R-value that may be as high as R-6.5 per inch.

How many inches of rigid insulation is r30?

Typical R-30 fiberglass insulation is 10-inches-thick. Prior to buying fiberglass insulation, it is important to measure the joint spacing you are working with. Note that the actual space between the framing members will be less than 16 or 24 inches, but the foam batts can easily be stuffed between these lengths.

What is pink foam board?

Pink/Blue foam is actually EXTRUDED Polystyrene. This is a closed-cell extruded form of polystyrene that is commonly known by the trade name of “Styrofoam”. Just as most people call a vacuum-cleaner a “Hoover” Extruded Polystyrene is called “Styrofoam”.

Can I paint foam board insulation?

Only water-based acrylic or latex paint should be used on foam insulation, whether you are using the material for crafts or are painting unfinished walls. Avoid any oil-based or other solvent-based paints, these contain chemicals that damage foam. … A wax sealant can then be applied to protect the paint.

What is the R value of ISO board?

For the R-value of polyiso wall insulation, a full thickness, 180 day aged value is recommended. Foilfaced polyiso has an R-value of about 6.5 per inch and permeability faced polyiso wall insulation has an R-value of around 6.0 per inch.

What is the difference between Styrofoam and foam board?

Styrofoam is made out of styrene which is a petroleum-based product. How is styrofoam made? Through polymerization, styrene is refined into polystyrene and then a hydrofluorocarbon agent is added. This combination is then extruded and allowed to expand under pressure until it forms a foam board.

Does rigid foam insulation need to be covered?

A: Yes, but to comply with building codes, all foam plastics must be covered with a 15 minute thermal barrier. Gypsum board, ½” thick is a common covering.

Can you put drywall over foam board?

Drywall can be installed over rigid foam board insulation. Multiply the width of the wall by its height to determine how many sheets of drywall will be necessary to cover the insulation. Mark a horizontal chalk line along the foam board 3 inches from the top of the wall, followed by a line 3 inches from the bottom.

Does stacking insulation increase R-value?

DIY Frequently Asked Questions / Can I stack insulation to get a higher R-value? Yes. For example, two R-19 batts can be stacked on each other to create R-38 insulation. You also can add loose-fill insulation on top of a bottom layer of batts.

Can you put rigid foam insulation between studs?

Even with its flaws—namely, its inability to perfectly mold to the bays between the studs—rigid foam insulation will be a better bet than no insulation. Using low-expanding spray foam sealant to seal those gaps further increases rigid foam’s insulating properties between studs.

Can you use foam board insulation in ceiling?

Yes, foam board insulation is an excellent complement to batt insulation. Foam board insulation can add insulation and eliminate thermal bridging when used in wall and ceiling assemblies insulated with batts. It can potentially replace the vapor barrier and house wrap as well.

What rigid foam insulation is best?

Expanded polystyrene (EPS), or beadboard, serves as the best insulating rigid foam for homeowners on a budget. This material costs less than other rigid foam boards, but still offers an R–value of 3.6 to 4.2 per inch, according to Fine Homebuilding.

Can you use foam board instead of plywood?

Some builders use two layers of sheathing — plywood or OSB for structural support and a seam-staggered layer of rigid foam for insulation. … A cost-effective way to increase the R-value of exterior walls, while also providing moisture control, is to use insulated foam sheathing instead of wood sheathing.

Does foam board insulation mold?

Foam building insulation, in both spray foam and foam board products, is resistant to mold growth but as we will explain here it is not absolutely mold-roof, and on occasion we do find mold growth on the surface of even closed-cell foam, in open-celled foam (rare), and on th surface of EPS and other foam insulating …

Can you put house wrap over foam board?

Installing House Wrap with Rigid Foam Insulation The answer, happily, is yes. … Some builders think that homes with “picture frame” window construction—where windows are framed with strapping lumber before windows are installed—should have the rigid foam go on first, with the house wrap over that.

What is an alternative to OSB?

In addition to OSB, builders can choose plywood, fiberboard, rigid foam, diagonal boards, and fiberglass-faced gypsum panels.

What is XPS sheathing?

FOAMULAR® Insulating Sheathing (IS) XPS Insulation is used as sheathing over all exterior walls in wood or metal framing construction to create an effective insulating envelope over the entire structure.

What is the R-value of spray foam in a 2x6 wall?

Thermal Control When blown or sprayed cellulose insulation is used, the R-value is typically R-20 for 2×6 walls. Exterior insulating sheathing is typically added as expanded polystyrene (EPS) at R-4/inch, extruded polystyrene (XPS) at R-5/inch or foil-faced polyisocyanurate at R-6.5/inch.
